Surface Grinding for Defense
Precision surface grinding for defense programs — hardened tooling and die plates, precision gauge blocks and fixtures, mating and sealing surfaces on machined components — supported by ITAR-registered manufacturing, controlled-data handling, and documented inspection on program-critical features.
- Typical Tolerance
- ±0.0001" flatness
- Primary Materials
- Aluminum · Stainless · Titanium
- Production
- Prototype → Production
- Machine Type
- Okamoto precision surface grinder
Why Defense Programs Use Surface Grinding
- Surface Grinding suits close-tolerance flatness, parallelism, and controlled surface finish, particularly after heat treat, which is common across defense programs.
- Restores geometry lost to heat-treat distortion.
- Holds flatness and parallelism tolerances tighter than a milled finish.
- Controlled Ra on mating surfaces improves seal performance.
- ITAR-registered controlled-data handling on surface grinding programs.
Surface Grinding Applications in Defense
Weapon and Optics Systems

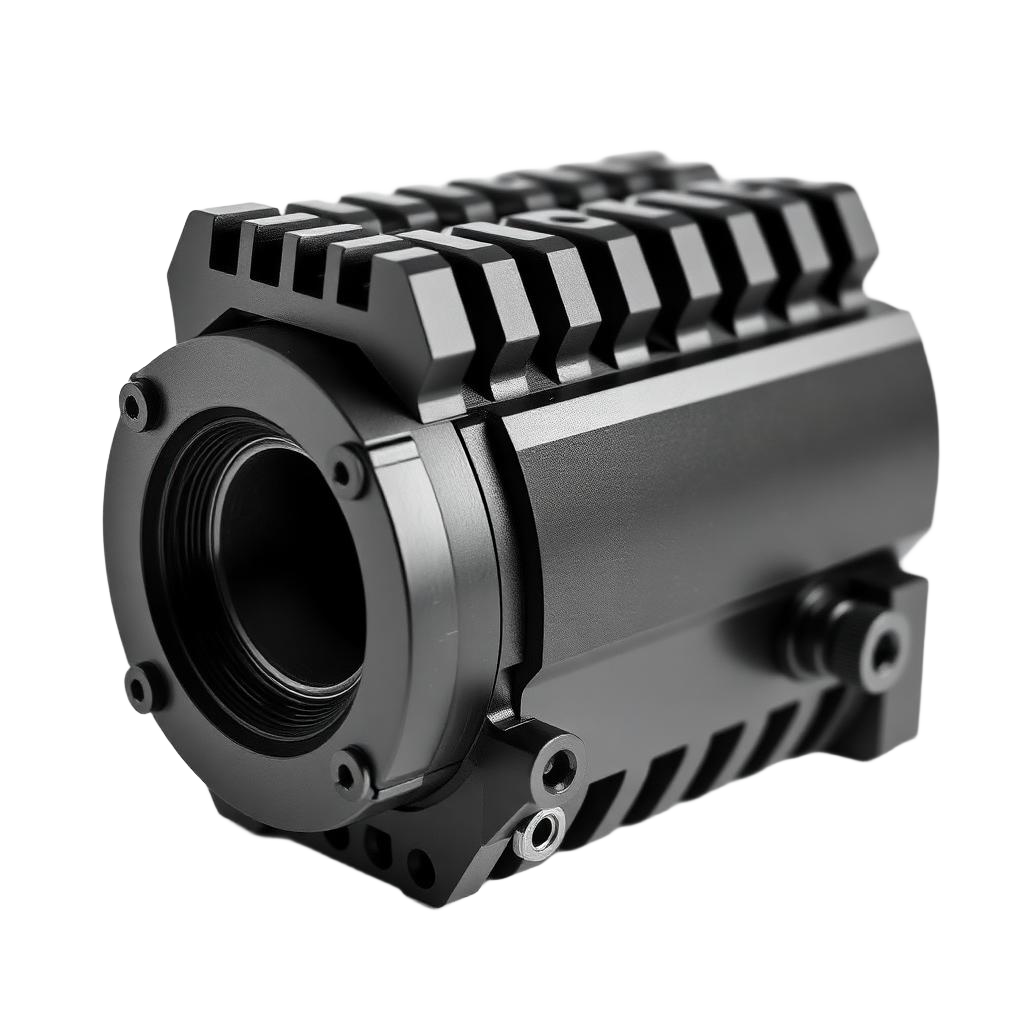

- Weapon system components
- Optics and sensor mounts
Fielded Equipment
- Tactical equipment housings
- Fielded equipment mechanisms
Structural Hardware
- Structural brackets
- Precision fasteners and hardware
Engineering Considerations for Defense Surface Grinding
Part Geometry
- Flatness across large plate area
- Parallelism between top and bottom features
- Surface finish targets on sealing lands
Material Behavior
- Hardened tool steels held without loss of hardness
- Stainless and carbon steel finished to specified Ra
- Hardened alloy machining strategies for tooling and precision details
- Surface treatments coordinated with qualified processors
Design and Tolerancing
- Flatness and parallelism callouts verified with height gauge and CMM
- Surface finish verified with profilometer
- Documented inspection on program-critical features
- Traceable lot control on production runs
Production Planning
- Grinding as finishing operation after heat treat
- Stock left on prior operations to allow post-heat-treat correction
- Repeatable setups for low-rate initial production
- Program-level revision and lot control
Materials Commonly Used in Defense Surface Grinding
View Aluminum overview
High-strength aluminum alloys used for defense brackets, housings, and structural components where low weight and efficient material removal are priorities on surface grinding.
Explore Stainless Steel Surface Grinding
Stainless grades selected for defense components requiring corrosion resistance, strength, and controlled surface finish — routinely run on surface grinding at Northline.
SteelView Titanium overview
Titanium alloys for defense components requiring high strength-to-weight and corrosion resistance; surface grinding strategy tuned for rigid workholding and controlled heat.
Explore Tool Steel Surface Grinding
Tool steels for defense tooling, fixturing, and precision detail work — machined soft or finished post heat-treat on surface grinding.
SteelSurface Grinding Advantages for Defense Components
- Restores geometry lost to heat-treat distortion.
- Holds flatness and parallelism tolerances tighter than a milled finish.
- Controlled Ra on mating surfaces improves seal performance.
- Consistent stock removal across repeat production.
How We Inspect Defense Surface Grinding-Produced Components
Surface profilometer for Ra verification
Height gauge and CMM for flatness/parallelism
ITAR-registered controlled-data handling
Material traceability and Certificate of Conformance
Documented inspection on program-critical features
Why Defense Programs Work With Northline
- ITAR-registered US manufacturing at a single facility
- Documented quality flowdown on a per-program basis
- Prototype through low-rate initial production
Related Manufacturing Resources
Surface Grinding overview
Machines, envelopes, materials, and tolerances for this capability.
Defense industry
Requirements and considerations across this industry sector.
Wire EDM for Defense
Wire EDM applied to defense programs with documented inspection.
CNC Milling for Defense
CNC Milling applied to defense programs with documented inspection.
Inspection & Metrology for Defense
Inspection & Metrology applied to defense programs with documented inspection.
Tolerance standards
Typical process ranges by feature type.
First Article Inspection
Documentation and workflow for qualified programs.
Engineering resources
DFM, tolerance, and material guides for design teams.
Surface Grinding for Defense — FAQs
The questions engineering and procurement teams ask most often before a first quote.
What defense components are well suited to Surface Grinding?
Surface Grinding suits close-tolerance flatness, parallelism, and controlled surface finish, particularly after heat treat. Typical defense parts include Weapon system components, Optics and sensor mounts, Tactical equipment housings, Fielded equipment mechanisms.
What tolerances are typical for defense surface grinding?
Northline holds ±0.0001" flatness as a typical envelope on Surface Grinding, with tighter callouts held on qualified features and reviewed against process capability during quoting.
Which defense materials can Northline surface grind?
Common defense materials include Aluminum, Stainless Steel, Titanium, Tool Steel. Grade selection and heat/lot traceability are maintained; alternates are reviewed during quoting.
Can Northline provide First Article Inspection documentation?
Yes. AS9102-format First Article Inspection reports are available on request. Northline is ISO 9001:2015, AS9100D, and ITAR registered.
Can you support both prototype and repeat defense production?
Yes. The same setups used for prototype and first-article carry into repeat production, so geometry and inspection results carry forward without a process change.
How do you control defense-specific engineering considerations on Surface Grinding?
Flatness across large plate area. Datum strategy, inspection frequency, and fixturing are reviewed during quoting against the specific defense drawing requirements.
